  • Bluefruit Interface with Accelerometer and Bluefruit-App

    Bluefruit Interface with Accelerometer and Bluefruit-App

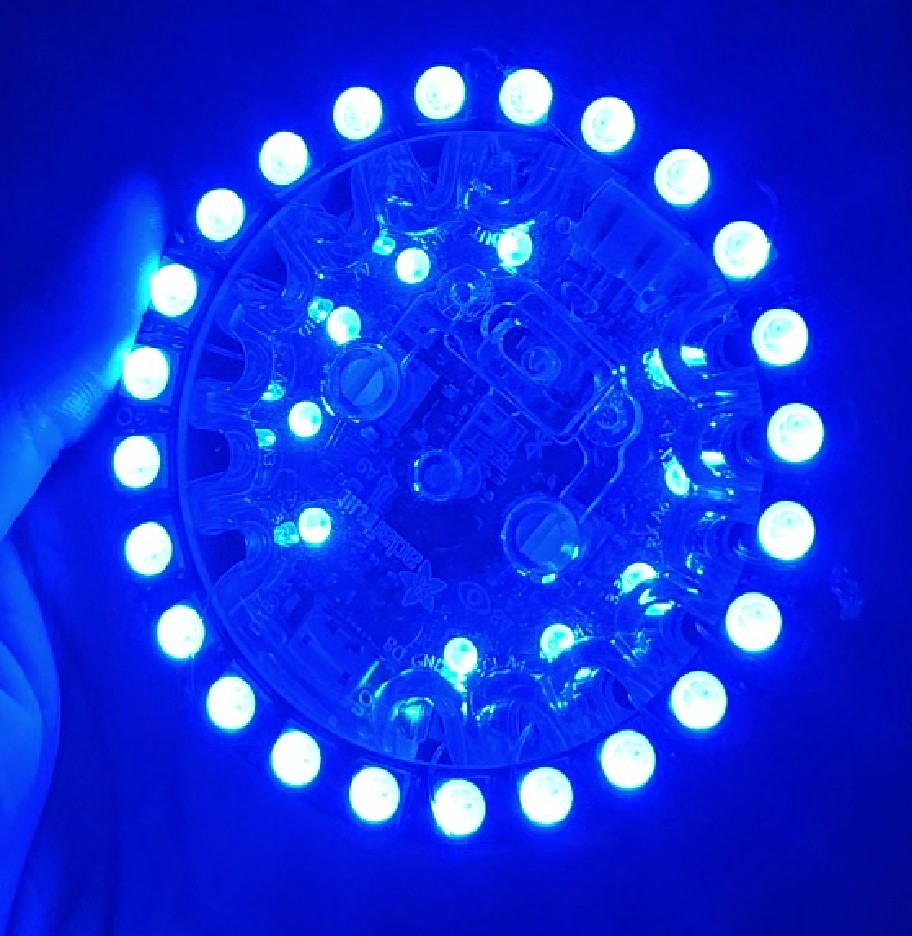

    We made two interfaces for a theater play using two Circuit Playground Bluefruit from Adafruit and an additional NeoPixel Ring with 24 LEDs (also from Adafruit). All Circuit Playground boards already come with several built-in sensors, LEDs, and a buzzer, which makes it easier and faster to implement into your design. The Bluefruit comes with…

  • Simple Timer with LEDs and speaker

    Simple Timer with LEDs and speaker

    inspired by the Arduino Starter Kit example #8: ‚The Digital Hourglass‘, we made a simple tea timer using two pushbuttons to enter two different desired times: 3 minutes and 5 minutes. After pressing any of the push buttons all 6 LEDs will light up. Each one of the 6 LEDs will be turning off sequentially…

  • Boldport Kits – The Tap and the Cordwood Puzzle Too

    Boldport Kits – The Tap and the Cordwood Puzzle Too

    Boldport sells many interesting soldering kits, inspired by old famous circuits. We got two of them: We are using „The Tap“ (a touch sensor circuit) to turn on three of the eight LEDs from the „Cordwood Puzzle Too„. The Tap – a touch sensor circuit from 1974 with three touch pads, a reset touch pad…

  • Counter with 7-Segment-Display and two push buttons

    Counter with 7-Segment-Display and two push buttons

    When you press one of the push-buttons you increase the number shown on the 7-segment-display. When you press the other push-button you decrease the number shown on the 7-segment-display. Material: Video: Hardware: The segments for each digit are small LEDs and they are named from A to G like this: Each 7-segment-display type has a…

  • App for Arduino+Bluetooth HC-05

    App for Arduino+Bluetooth HC-05

    We created an App in order to control an Arduino UNO via Bluetooth. The Arduino controls a servomotor and an UV LED. Materials: Arduino UNO Bluetooth modul HC-05 ( for +5V) Small Servomotor SG90 UV LED or any other LED Circuit: Pin connections: App with MIT AppInventor: For more information and tutorials visit their website:…

  • Disco Lights Wearable

    Disco Lights Wearable

    using a Gemma M0 from Adafruit, a Neopixel Jewel and an ALS (Ambient Light Sensor) we build up this wearable as Disco Lights (simulation). Here is a video: MATERIALS: ° Gemma M0 from Adafruit ° NeoPixel Jewel ° Ambient Light Sensor TEMT6000 ° Conductive Thread to stitch all together on the garment. We only use…

  • Greeting Puppy

    Greeting Puppy

    Here is a prototype for a greeting puppy using an Arduino, an ultrasonic sensor (for the eyes) and a servomotor (for the tail). The puppy will wiggle its tail faster as you come closer 🙂 The hardware connections are as follows: For us it was better to use an extra battery pack for the servomotor.…

  • Schadensvermeidende Regeln

    Schadensvermeidende Regeln

    1. Pluspol (+ rote Kabel) und Minuspol (– schwarze Kabel) von der Batterie sollten sich nicht berühren!!! Achte darauf, dass alle Verbindungen richtig sind bevor du die Batterie verbindest!!! 2. LED immer mit Widerstand verwenden, sonst brennt die LED durch (geht kaputt): 3. Kurze Beine vermeiden das Risiko eines Kurzschlusses und sehen übersichtlicher aus: 4.…

  • Magic 8 Ball – Arduino Kit Example

    Magic 8 Ball – Arduino Kit Example

    The Arduino Starter Kit comes with many examples for beginners. The associated code is included on the Arduino IDE. To open the code on the Arduino IDE, go to: File→ Examples→ 10.StarterKit_BasicKit → … and choose the example you want to work on. For this example we’ve modified the code for the Crystal Ball: The…

  • Holiday cards with LEDs

    Holiday cards with LEDs

    If you enjoy tinkering with your kids or on your own, here are some ideas to light-up your self-made holiday cards. You will need some LEDs, copper tape and a CR2032 cell battery. I like to use axial LEDs because they are small and flat, so the card will not look bulky. Also you don’t…

  • Bluetooth Interface

    Bluetooth Interface

    The main idea of this project is to send some information from your cell phone (through an App) to your Arduino via Bluetooth and then to display this information on an OLED Display. I found this project originally published by circuitdigest.com on how to build a basic Smart Watch Interface easy to follow and well…

  • Web Server with ESP Boards

    Web Server with ESP Boards

    There is a website called Random Nerd Tutorials with many cool and well explained projects using Arduino based boards and Raspberry Pi. I am going to share here two of these projects which I followed from their website. The first one is using an ESP8266 Board to control two LEDs from your cell phone, laptop…

  • LCD-Keypad_Menu to obtain capacitance value

    LCD-Keypad_Menu to obtain capacitance value

    The idea for this project is to simulate the signals going to the relays that activate a capacitance bank. I am using an Arduino DUE and the Adafruit-LCD-Keypad_Board (with I2C). The Arduino receives two inputs: the inductance value L that will be used and the desired resonance frequency f. The Arduino calculates the capacitance value…

  • Proximity Lamp

    Proximity Lamp

    This kit from BareConductive contains three lamps to tinker yourself using conductive ink (also included in the kit). There is only one Light Up Board in the kit, so if you want to make three lamps you will have to buy two additional Light Up Boards. For more information visit their website: BareConductive

  • Wearable with Gemma M0 and Accelerometer

    Wearable with Gemma M0 and Accelerometer

    Using the microcontroller board Gemma M0 from Adafruit we are simulating gravity on the LEDs of the NeoPixel Ring using an accelerometer LIS3DH. The LEDs will light on, following the inclination of the board. If you hold the board completely vertical and you rotate it, the LEDs will light on individually, changing their color as…

  • Für kleine ProgrammiererInnen mit Arduino:

    Für kleine ProgrammiererInnen mit Arduino:

    Nächste Kurse: VHS-Nord Was ist Arduino? ACHTUNG! Kurzschluss-Risikos sollten vermieden werden, sonst können die Batterie und die Bauteile sehr heiß werden!!! Fußgängerampel simulieren Video1 Video2 Alarm mit Ultraschall-Sensor Video MoodCue (mit Servomotor) Temperatursensor LM35 Video Umgebungslicht-Sensor Elektronischer Würfel Video Schafzähler mit Infrarot-Sensor und 7-Segment-Display Video Automatische Tür mit Bewegungsmelder Wearable with Gemma M0, accelerometer and…

  • Für kleine ElektronikerInnen:

    ACHTUNG! Kurzschluss-Risikos sollten vermieden werden, sonst können die Batterie und die Bauteile sehr heiß werden!!! Nächste Kurse: VHS-Nord Nachtlicht. Die LED leuchtet, wenn du am Fotowiderstand Schatten machst.   Klopf-Licht. Die LED leuchtet, wenn du an deinen Piezo-Sensor klopfst. Video   Pustelicht. Die LED leuchtet, wenn du an deinen Piezo-Sensor pustest oder klopfst. Video  …

  • Elektronen-Fänger

    Elektronen-Fänger

    Die LED leuchtet, wenn du in der Nähe der Antenne (langes Kabel) deine Haare kämmst oder an einem Wollpulli reibst … oder wenn du elektrostatische Kräfte hast 😉 Materialien: Elektrizität ist keine Erfindung des Menschen, sondern eine in der Natur auftretende Eigenschaft. Besonders anschaulich wird dies, wenn man bei einem Gewitter die Blitze am Himmel…

  • Math Board (prototype)

    Using an AT8951, a 4×4 keypad and two LED dot-matrix this board simulates two basic mathematical functions: Amount Displays randomly the amount represented by any number given by the user between 1 and 99. For example: if you type 27, then 27 dots from the LED dot-matrix will turn on randomly. Every time you press…

  • Musical Steps (Prototype)

    Using an AT8951 microcontroller, infrared transistors as input sensors and an ISD2540 Voice Recording IC, I simulated here „musical steps“. Every step detected by the infrared sensors will activate a different part of the ISD2540 memory. You can record any song, speech, etc inside the ISD2540 and access parts of this recording by accessing the…
